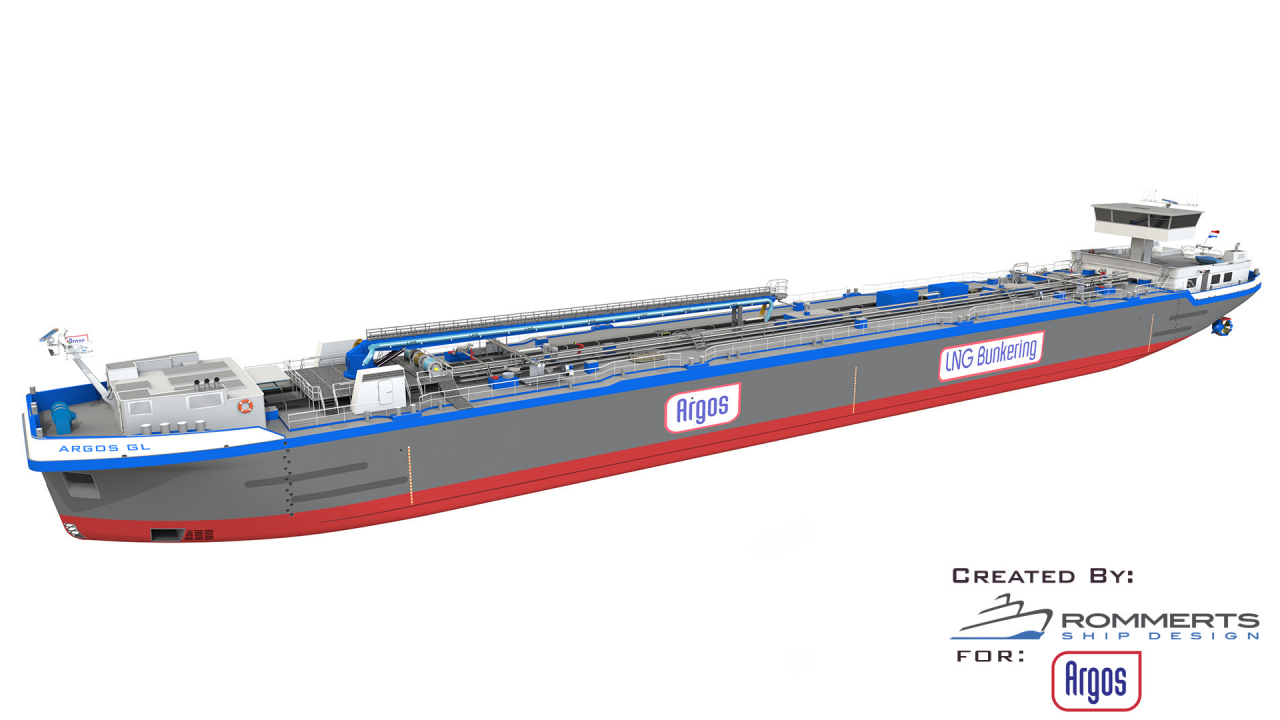

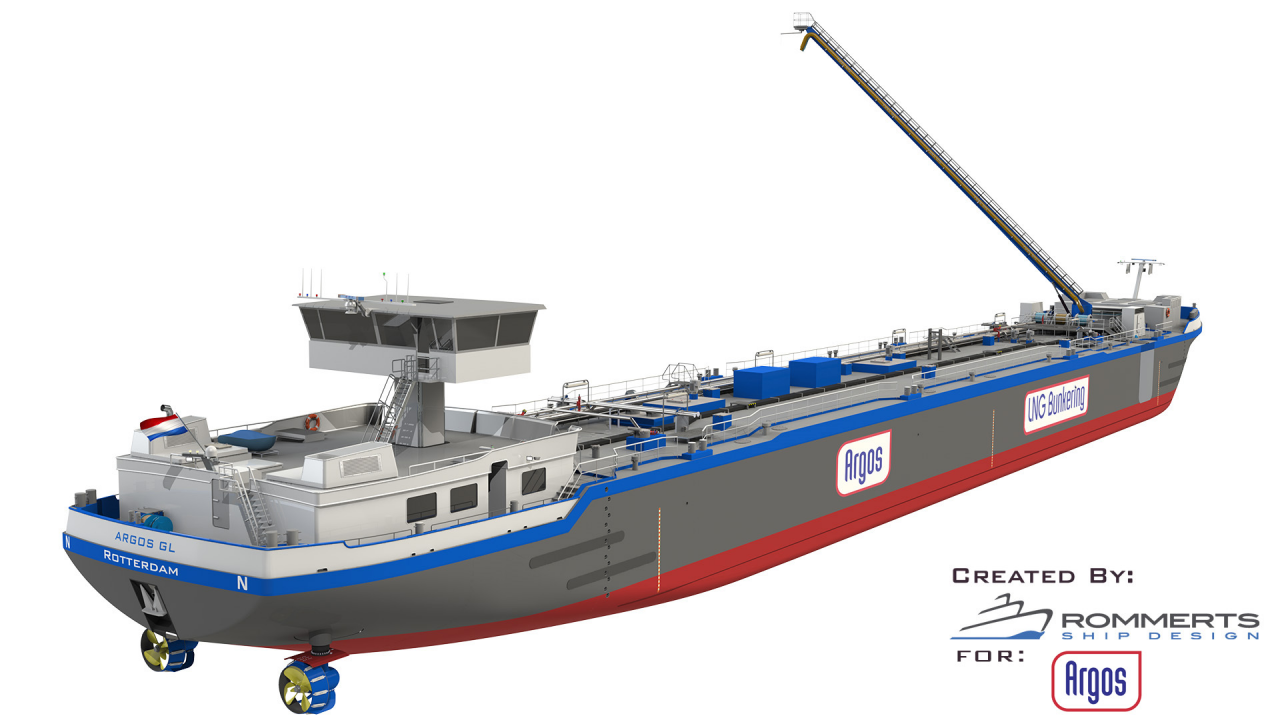

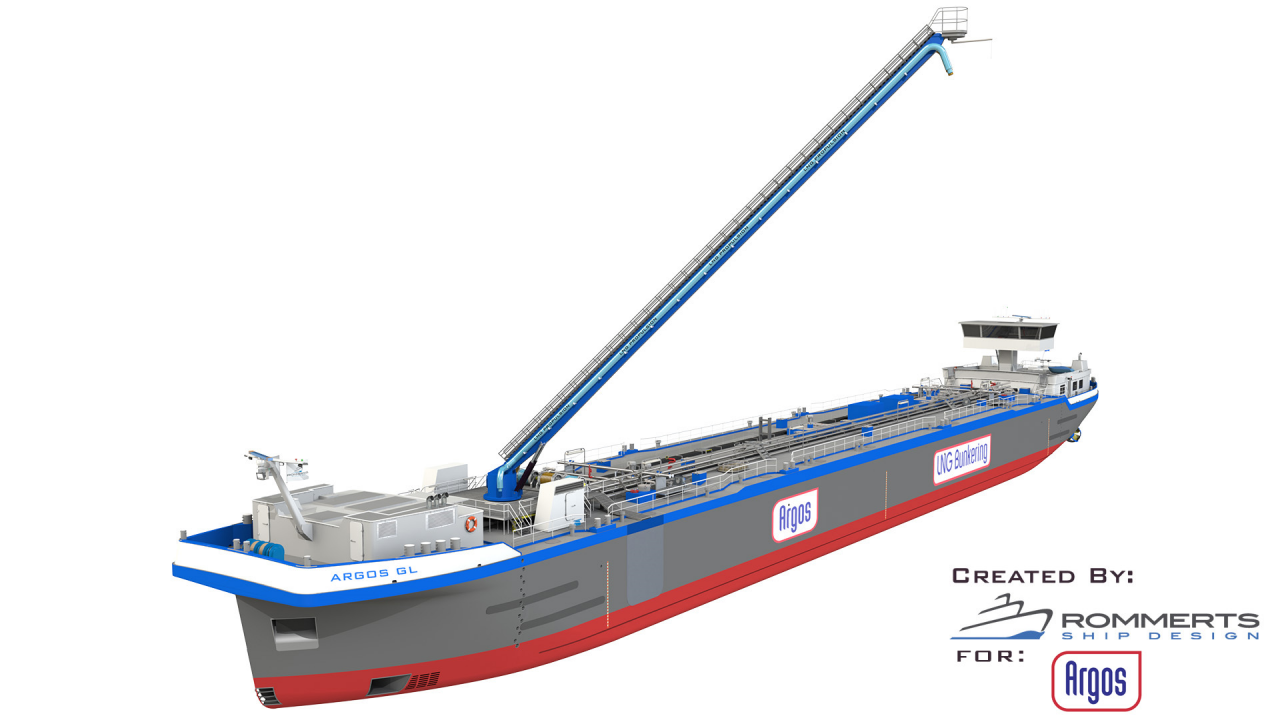

mts "ARGOS GL"
Inland waterway vessel with great capabilities, equipped in tanks for carrying both Oil and LNG. Design has been made for Argos Group B.V.
LNG driven vessel is producing electric power on the foreship generators and transferring it to electric Z-Drive Azimuth Thrusters.
Work carried out on this project:
-design
-stability
Main particulars:
| Length: | 109.94m |
| Breadth: | 13.50m |
| Depth mld.: | 6.30m |
| Draught scantling: | 4.50m |
| Air draught max* | 8.50m |
*air draught at T=1.50m
Cargo arrangement:
LNG GTT bunker tanks:
| Number of tanks: | 2 |
| Volume 100%: | 935m³ x 2 = 1870m³ |
| Volume 98%: | 917m³ x 2 = 1834m³ |
Fuel Oil bunker tanks:
| Number of tanks: | 4 |
| Volume 100%: | 380m³ x 4 = 1520m³ |
| Volume 98%: | 368m³ x 4 = 1472m³ |
